Results:

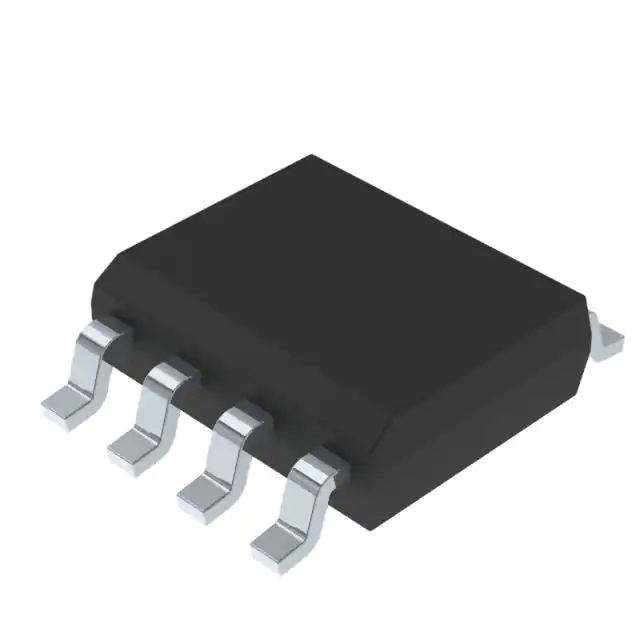

: STISO621TR

Brand:STMicroelectronics

Package:8-SOIC (0.154, 3.90mm Width)

Category:Digital Isolators

Description:DUAL CHANNEL DIGITAL ISOLATOR

Price:$2.29

Availability:2,207

RFQ

Datasheet

: STISO621WTR

Brand:STMicroelectronics

Package:8-SOIC (0.295, 7.50mm Width)

Category:Digital Isolators

Description:DUAL CHANNEL DIGITAL ISOLATOR

Price:$3.12

Availability:897

RFQ

Datasheet
