Results:

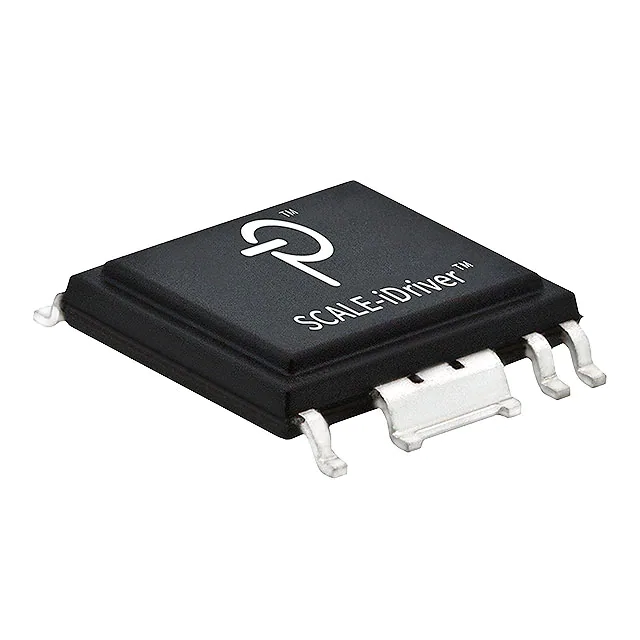

: SIC1182KQ-TL

Brand:Power Integrations

Package:16-PowerSOIC (0.350, 8.89mm Width), 15 Leads

Category:Isolators - Gate Drivers

Description:8A 1200V ESOP IGBT SIC IN T/R

Price:$9.49

Availability:2,793

RFQ

Datasheet

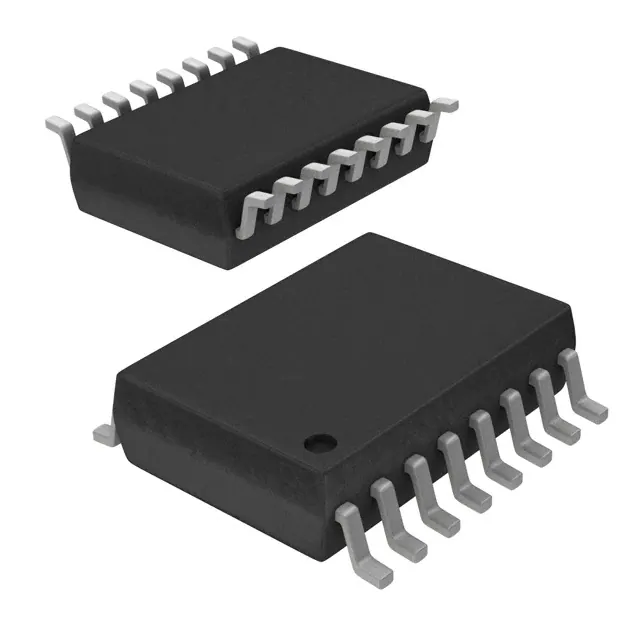

: ACPL-31JT-000E

Brand:Broadcom Limited

Package:16-SOIC (0.295, 7.50mm Width)

Category:Isolators - Gate Drivers

Description:OPTOISO 5KV 1CH GATE DRIVER 16SO

Price:$7.36

Availability:265

RFQ

Datasheet

: SIC1181KQ

Brand:Power Integrations

Package:16-PowerSOIC (0.350, 8.89mm Width), 15 Leads

Category:Isolators - Gate Drivers

Description:8A 750V ESOP SIC IN TUBES

Price:$7.38

Availability:3,402

RFQ

Datasheet

: SID1181KQ

Brand:Power Integrations

Package:16-PowerSOIC (0.350, 8.89mm Width), 15 Leads

Category:Isolators - Gate Drivers

Description:8A 750V ESOP IGBT

Price:$8.47

Availability:2,629

RFQ

Datasheet

: SID1132KQ

Brand:Power Integrations

Package:16-PowerSOIC (0.350, 8.89mm Width), 15 Leads

Category:Isolators - Gate Drivers

Description:2.5A, 1200V REINFORCED ISOLATION

Price:$8.71

Availability:220

RFQ

Datasheet

: FOD8318V

Brand:onsemi

Package:16-SOIC (0.295, 7.50mm Width)

Category:Isolators - Gate Drivers

Description:OPTOISO 4.243KV GATE DRIVER 16SO

Price:$9.08

Availability:398

RFQ

Datasheet

: SID1182KQ

Brand:Power Integrations

Package:Surface Mount

Category:Isolators - Gate Drivers

Description:8A, 1200V REINFORCED ISOLATION

Price:$392.00

Availability:392

RFQ

Datasheet

: SIC1182KQ

Brand:Power Integrations

Package:16-PowerSOIC (0.350, 8.89mm Width), 15 Leads

Category:Isolators - Gate Drivers

Description:8A 1200V ESOP IGBT SIC IN TUBES

Price:$9.49

Availability:2,942

RFQ

Datasheet

: TLP701(TP,F)

Brand:Toshiba Semiconductor and Storage

Package:6-SOIC (0.268, 6.80mm Width)

Category:Isolators - Gate Drivers

Description:OPTOISO 5KV GATE DRIVER 6SDIP GW

Price:$1.78

Availability:2,821

RFQ

Datasheet

: FOD3181

Brand:Fairchild Semiconductor

Package:8-DIP (0.300, 7.62mm)

Category:Isolators - Gate Drivers

Description:FET OUTPUT OPTOCOUPLER

Price:$1.09

Availability:3,281

RFQ

Datasheet

: FOD8342R2

Brand:onsemi

Package:6-SOIC (0.268, 6.80mm Width)

Category:Isolators - Gate Drivers

Description:OPTOISO 5KV 1CH GATE DRIVER 6SOP

Price:$3.13

Availability:3,939

RFQ

Datasheet

: ACPL-T350-560E

Brand:Broadcom Limited

Package:8-SMD, Gull Wing

Category:Isolators - Gate Drivers

Description:OPTOISO 3.75KV GATE DRVR 8DIP GW

Price:$3.13

Availability:3,853

RFQ

Datasheet

: CPC1590PTR

Brand:IXYS Integrated Circuits Division

Package:8-SMD, Gull Wing

Category:Isolators - Gate Drivers

Description:OPTOISO 3.75KV GATE DRVR 8FLTPCK

Price:$3.41

Availability:3,448

RFQ

Datasheet

: NCV57081ADR2G

Brand:onsemi

Package:8-SOIC (0.154, 3.90mm Width)

Category:Isolators - Gate Drivers

Description:ISOLATED DRIVER IN A COMPACT 8-P

Price:$5.62

Availability:3,681

RFQ

Datasheet

: SI8274GB1-IS1R

Brand:Skyworks Solutions Inc.

Package:16-SOIC (0.154, 3.90mm Width)

Category:Isolators - Gate Drivers

Description:DGTL ISO 2.5KV GATE DRVR 16SOIC

Price:$5.53

Availability:2,061

RFQ

Datasheet

: SI8751AB-IS

Brand:Skyworks Solutions Inc.

Package:8-SOIC (0.154, 3.90mm Width)

Category:Isolators - Gate Drivers

Description:DGTL ISO 2.5KV GATE DRIVER 8SOIC

Price:$3.17

Availability:3,261

RFQ

Datasheet

: 1ED3323MC12NXUMA1

Brand:Infineon Technologies

Package:-

Category:Isolators - Gate Drivers

Description:ISOLATED GATE DRIVER

Price:$5.79

Availability:960

RFQ

: PS9506-V-AX

Brand:Renesas Electronics America Inc

Package:8-DIP (0.300, 7.62mm)

Category:Isolators - Gate Drivers

Description:HI-SPD OPTOCPLR 8-PIN DIP

Price:$3.34

Availability:909

RFQ

Datasheet

: PS9506L3-AX

Brand:Renesas Electronics America Inc

Package:8-SMD, Gull Wing

Category:Isolators - Gate Drivers

Description:OPTOISO 5KV GATE DRIVER 8DIP GW

Price:$3.49

Availability:742

RFQ

Datasheet

: PS9531L3-AX

Brand:Renesas Electronics America Inc

Package:8-SMD, Gull Wing

Category:Isolators - Gate Drivers

Description:OPTOISO 5KV 1CH GATE DRIVER 8SMD

Price:$3.53

Availability:868

RFQ

Datasheet
