Results:

: IXEN60N120

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 100A 445W SOT227B

Price:$0.00

Availability:3,773

RFQ

Datasheet

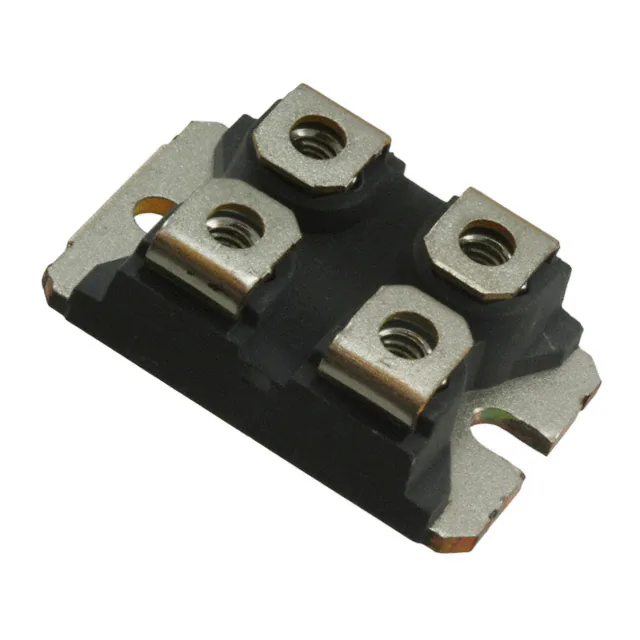

: IXEN60N120D1

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 100A 445W SOT227B

Price:$0.00

Availability:2,174

RFQ

Datasheet

: IXGE200N60B

Brand:IXYS

Package:ISOPLUS227™

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 160A ISOPLUS227

Price:$0.00

Availability:3,549

RFQ

Datasheet

: IXGN400N30A3

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 300V 400A 735W SOT227B

Price:$0.00

Availability:3,224

RFQ

Datasheet

: IXGN50N60BD2

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 75A 250W SOT227B

Price:$0.00

Availability:3,471

RFQ

Datasheet

: IXGN50N60BD3

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 75A 250W SOT227B

Price:$0.00

Availability:3,686

RFQ

Datasheet

: IXGN60N60C2

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 75A 480W SOT227B

Price:$0.00

Availability:2,017

RFQ

Datasheet

: IXGN60N60C2D1

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 75A 480W SOT227B

Price:$0.00

Availability:3,026

RFQ

Datasheet

: IXGN80N60A2

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 160A 625W SOT227B

Price:$0.00

Availability:3,079

RFQ

Datasheet

: IXGN80N60A2D1

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 160A 625W SOT227B

Price:$0.00

Availability:2,319

RFQ

Datasheet

: IXSN55N120A

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 110A 500W SOT227B

Price:$0.00

Availability:2,357

RFQ

Datasheet

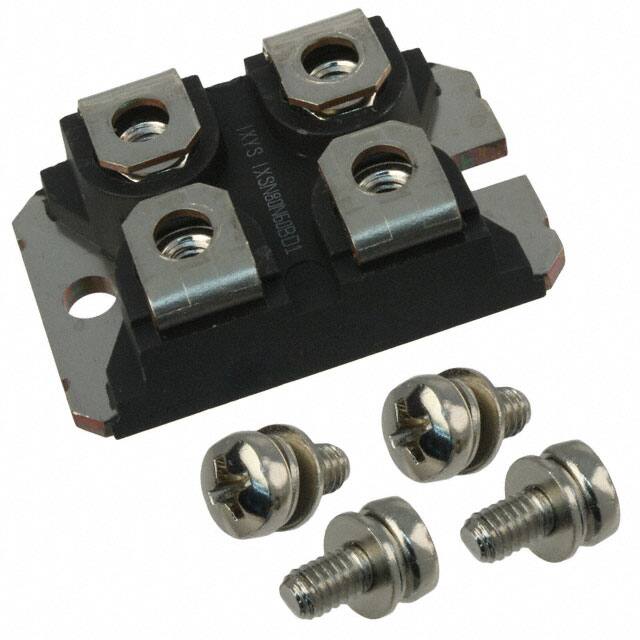

: IXSN80N60BD1

Brand:IXYS

Package:SOT-227-4, miniBLOC

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 600V 160A 420W SOT227B

Price:$0.00

Availability:2,829

RFQ

Datasheet

: MDI150-12A4

Brand:IXYS

Package:Y3-DCB

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 180A 760W Y3DCB

Price:$0.00

Availability:3,073

RFQ

Datasheet

: MDI200-12A4

Brand:IXYS

Package:Y3-DCB

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 270A 1130W Y3DCB

Price:$0.00

Availability:2,880

RFQ

Datasheet

: MDI300-12A4

Brand:IXYS

Package:Y3-DCB

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 330A 1380W Y3-DCB

Price:$0.00

Availability:3,179

RFQ

Datasheet

: MDI400-12E4

Brand:IXYS

Package:Y3-Li

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 420A 1700W Y3LI

Price:$0.00

Availability:3,254

RFQ

Datasheet

: MID400-12E4

Brand:IXYS

Package:Y3-Li

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 420A 1700W Y3LI

Price:$0.00

Availability:2,733

RFQ

Datasheet

: MID400-12E4T

Brand:IXYS

Package:Y3-Li

Category:Transistors - IGBTs - Modules

Description:IGBT MOD 1200V 420A 1700W Y3LI

Price:$0.00

Availability:3,902

RFQ

Datasheet

: MIO1200-25E10

Brand:IXYS

Package:E10

Category:Transistors - IGBTs - Modules

Description:IGBT MODULE 2500V 1200A E10

Price:$0.00

Availability:3,311

RFQ

Datasheet

: MIO1200-33E10

Brand:IXYS

Package:E10

Category:Transistors - IGBTs - Modules

Description:IGBT MODULE 3300V 1200A E10

Price:$0.00

Availability:2,852

RFQ

Datasheet
